  • Square Mesh Molded Fiberglass Grating

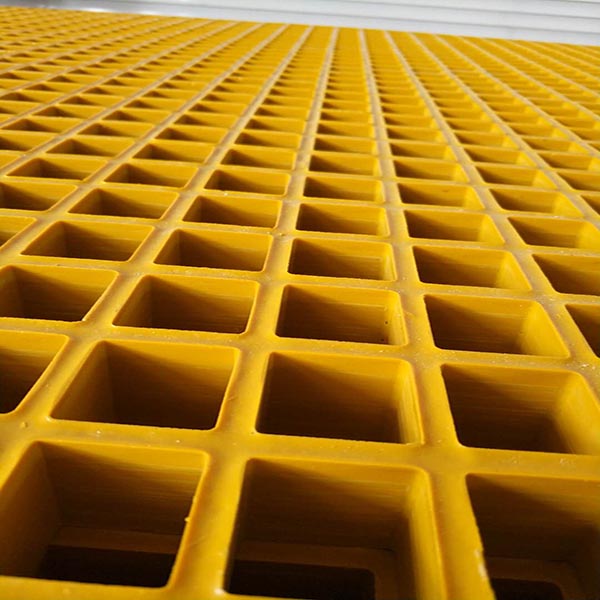

Square Mesh Molded Fiberglass Grating

  • Material: Fiberglass Reinforced Plastic
  • Technology: Molded
  • Mesh Size: 1.5"X1.5", 2"X2"
  • Panel Thickness: 0.5", 0.75", 1", 1.25", 1.5", 2"
  • Surface Treatment: Concave, Gritted, Smooth
  • Color: Yellow, Gray, Blue, Green, or Customized
  • Resin: Orthophthalic, Isophthalic, Vinyl ester or Phenolic
  • EMAIL   INQUIRY

Molded Fiberglass Grating is manufactured by composites material including resin and various fillers, reinfored by continuous fiberglass roving, cured in the heated mold.

Properties:

1. Light weight with high strength

    Our grating is around 1/3 weight of steel grating but with similar strength.

2. Chemical resistance

    Our grating is anti-corrosive against different kinds of chemical medium including acid and alkali, via different formulas.

3. Fire reisistance

    Our grating is designed to meet a minimum Class 1  Fire Spread Rating of ASTM E84.

4. UV resistance

    We can achiev UV resistance via special formula.

5. Non-conductive

    Our grating is made without any metallic ingredient.

6. Non-skid

    We do surface treatment like concave surface or gritted surface to achiev anti-slip.

7.  Easy to install

    We have various design of clips to make easy to install gratings.

8. Low maintanence cost

    With above properties, our grating is with low maintanence cost.

Available Grating Size:

                       Mesh Size(Inch) Panel Thickness(Inch)                     Panel Size

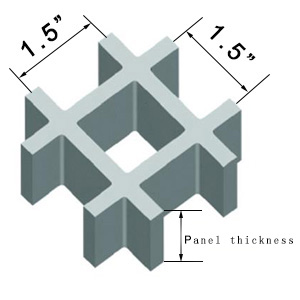

1.5"X1.5"

Mesh 1.5''X1.5''.jpg

0.5"

  3'X10', 4'X8', 4'X12', 5'X10', 5'X12'

                1000mmX2000mm

                1000mmX3000mm

                1000mmX4000mm

0.75"

  3'X10', 4'X8', 4'X12', 5'X10', 5'X12'

                1000mmX2000mm

                1000mmX3000mm

                1000mmX4000mm

1"

  3'X10', 4'X8', 4'X12', 5'X10', 5'X12'

                1000mmX2000mm

                1000mmX3000mm

                1000mmX4000mm

1.25"

  3'X10', 4'X8', 4'X12', 5'X10', 5'X12'

                1000mmX2000mm

                1000mmX3000mm

                1000mmX4000mm

1.5"

  3'X10', 4'X8', 4'X12', 5'X10', 5'X12

                1000mmX2000mm

                1000mmX3000mm

                1000mmX4000mm

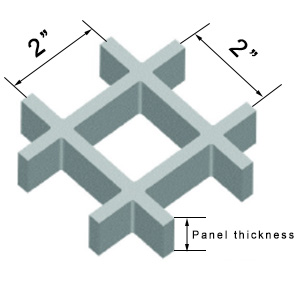

2"X2"

Mesh 2''X2''.jpg

0.5"

                3'X10', 4'X8', 4'X12'

                1000mmX2000mm

                1000mmX3000mm

0.75"

                3'X10', 4'X8', 4'X12'

                1000mmX2000mm

                1000mmX3000mm

1"

                3'X10', 4'X8', 4'X12'

                1000mmX2000mm

                1000mmX3000mm

1.25"

                3'X10', 4'X8', 4'X12'

                1000mmX2000mm

                1000mmX3000mm

1.5"

                3'X10', 4'X8', 4'X12'

                1000mmX2000mm

                1000mmX3000mm

2"

                3'X10', 4'X8', 4'X12'

                1000mmX2000mm

                1000mmX3000mm

Used for:

    Platform, Flooring, Walkway, Stair, Ramp, Tresh Cover...

Application fields:

    1. Chemical Plant

    2. Oil Rig

    3. Water Treatment

    4. City Construction

    5. Mine Industry

    6. Car Washing

    7. Food Processing

    8. Metal Machining

    9. Paper Mill

    10. Ship Deck

    11. ...
